HyperX Audio Mixer

• Easy-to-Use USB Audio Mixer
• Professional-Quality Sound
• Compatible with Most XLR Mics
• Plug and Play
• Designed for Creators
• Intuitive, Convenient Controls

Effortless, Pro-Level Audio Mixing.

The HyperX Audio Mixer is built for streamers and creators who want fine-tuned control of their audio sources. It’s a simple solution for mixing up to three audio sources: an XLR microphone input, a 3.5mm microphone input, and a stereo 3.5mm line input. This compact USB 3-track mixer features simple, intuitive controls so you won’t bring your recording to an abrupt halt as you attempt to figure out a bunch of frustrating buttons. With 3 faders and individual volume knobs for line and headphone outputs, you can easily find your perfect balance of mic, voice chat, and game audio. With support for 24-bit/96kHz recording and support for the HyperX ProCast and most other XLR mics, you’ll get professional-quality sound from your recordings.

Studio-Level Audio Quality

Capture accurate, low-noise recordings with the 24-bit/96kHz studio-level bit depth and sampling rate.

Compatible with Most XLR Microphones

XLR connection supports 48V phantom power for the HyperX ProCast and other active microphones. HyperX XLR cable included.

Easy-to-Use USB Interface.

No software or installation required. Just connect your inputs and the USB cable, and you’re good to go!

Designed and Built for Creators

The sleek, compact design of the HyperX Audio Mixer was built with streamers and content creators in mind. Get massive functionality with a small desktop footprint.

Convenient, Intuitive Controls

With individual level faders for each of your inputs, 2 volume knobs to regulate line and headphone outputs, and mute buttons, all the control you need is easy to understand, and right at your fingertips.

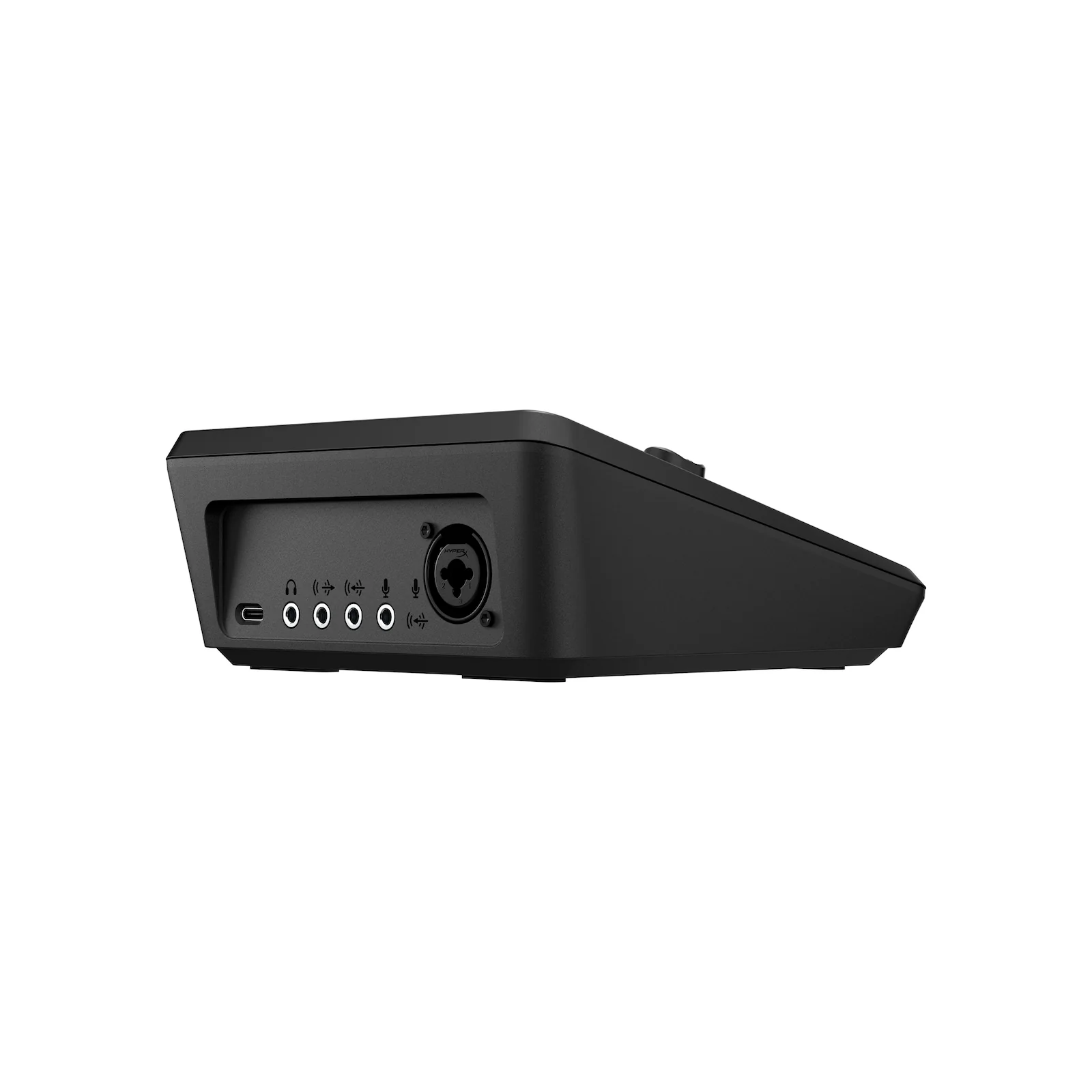

Connections and Features

• Microphone input(s):1x XLR / ¼” TRS combo jack
• 1x 3.5mm
• USB connection:USB-C
• USB specification:USB 2.0 (high speed)
• USB audio class:UAC 2.0
• Bit depth(s):24-bit
• 16-bit
• Controls:Input gain faders: XLR / ¼” TRS microphone
• 3.5mm microphone
• 3.5mm line input; Input mute buttons: XLR / ¼” TRS microphone
• 3.5mm microphone
• 3.5mm line input; Output volume knobs: headphone
• line output; Output mute buttons: headphone
• line output; 48V phantom power button.
• Power supply:5V
• 500mA (USB)
• System compatibility:Microsoft Windows 10 (build 1703) and newer
• macOS.

XLR Microphone Input

• Input type:Balanced
• mono
• Frequency response:20Hz - 20kHz
• Gain range:1 - 50dB
• THD+N:< 1% (at 1kHz/0dB Gain)
• Noise:≤-88dBFS (at 0dB Gain
• A-weighted)

¼” 6.35mm TRS Microphone Input

• Input type:Balanced
• mono
• Frequency response:20Hz - 20kHz
• Gain range:1 - 50dB
• THD+N:< 1% (at 1kHz/0dB Gain)
• Noise:≤-88dBFS (at 0dB Gain
• A-weighted)

3.5mm Microphone Input

• Input type:; Unbalanced
• mono.
• Frequency response:20Hz - 20kHz
• Gain range:-12dB - 34dB.
• THD+N:< 1% (at 1kHz/0dB Gain)
• Noise:≤-91dBFS (at 0dB Gain
• A-weighted).
• Microphone bias:2.7V
• 2.2 kΩ
• 500uA

3.5mm Line Input

• Frequency response:20Hz - 20kHz
• THD+N:< 1% (at 1kHz/0dB Gain)

3.5mm Headphone Output

• Frequency response:20Hz - 20kHz
• Maximum output power:≥22mW
• THD+N:< 1% (at 1kHz/0dBFS
• A-weighted)
• Noise:≤-91dV (A-weighted)
• SNR:≥95dB (at 1kHz/0dBFS
• A-weighted)

3.5mm Line Output

• Frequency response:20Hz - 20kHz
• THD+N:< 1% (at 1kHz/0dBFS).
• Noise:≤-95dV (A-weighted).
• SNR:≥95dB (at 1kHz/0dBFS
• A-weighted)

Physical Specifications

• Length:144mm
• Width:140mm
• Height:59mm
• Cable length(s) and type(s):118.1in XLR
• 59.05in USB-C to USB-A
• 1.2m 4-pole 0.13in audio

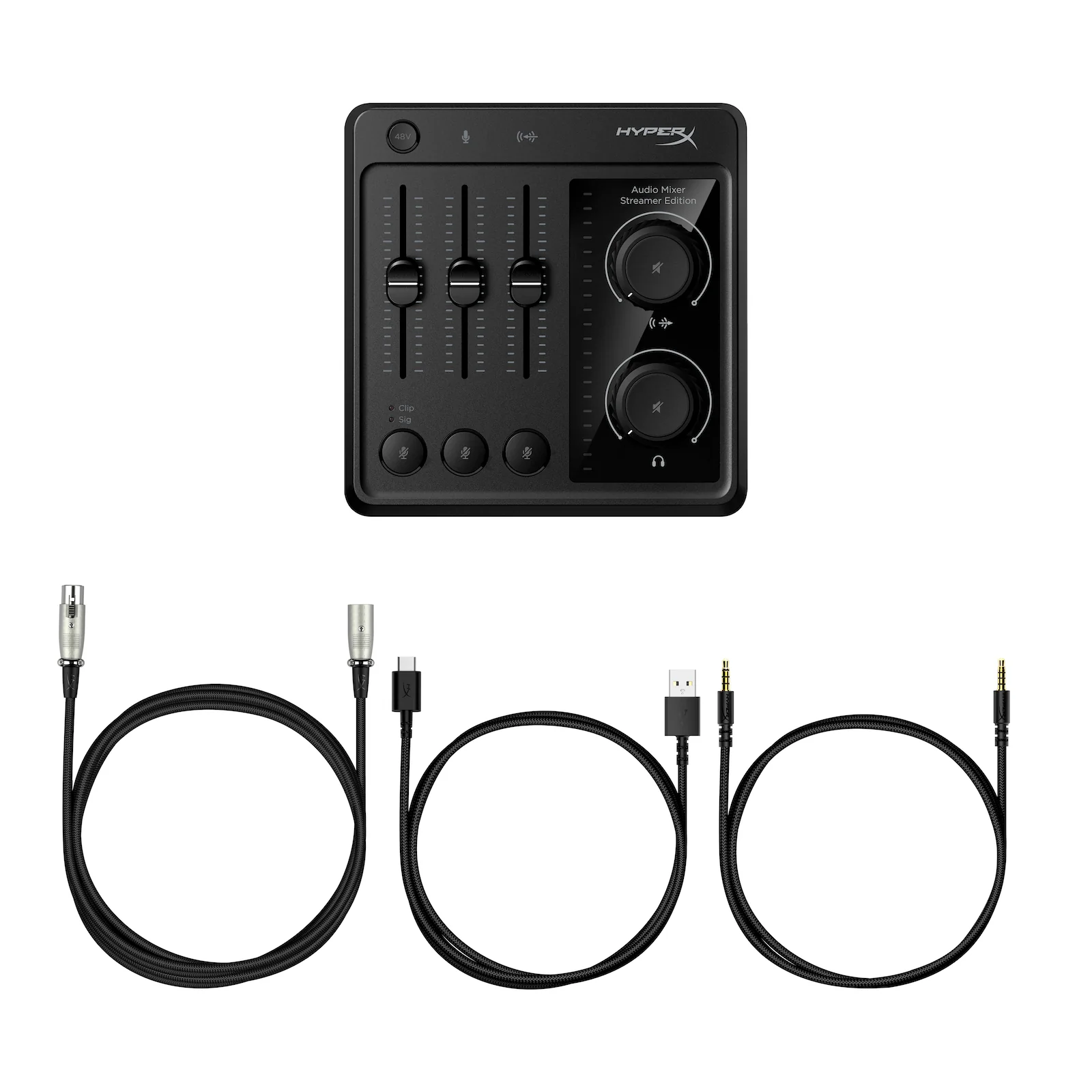

What's Included In the Box

• Audio Mixer, XLR Cable, USB-C to USB-A Cable, 3.5mm Cable

Warranty

• 2 years
